Top Perforated Cable Tray Manufacturers in Pune 2026 - SAAR Industry
SAAR Industry is the leading Perforated Cable Tray Manufacturers in Pune.We are trusted suppliers and exporters in Pune, with an ISO 9OO1-2O15 certification, which allows us to deliver high quality Perforated Cable Tray in Pune. For 6+ years, our production plant has a high standard of machinery and technical expertise to produce accurate and high-performance cable tray systems in Pune. We at SAAR Industry follows strict quality measures from selecting the raw material to delivering the final goods. We are in manufacturing business and we deal with cable trays of other kinds such as perforated cable trays, ladder cable trays, and cable management systems tailor-made.
Our perforated cable tray has thickness of 0.8m to 3mm and available in standard & Custom sizes. They are applicable in Data & Communication cabling, Commercial wiring, process plant as well as electrical rooms.
What is Perforated Cable Tray?
We have our perforated cable trays are actively used in industrial plants, commercial buildings and infrastructure projects and also in power distribution systems. Being top Perforated Cable Tray Manufacturers in Pune, we pay attention to innovation, quality and customer satisfaction at our Group of Industries. The features of our products at Saar Industries will be to offer effective cable management, simple installation, and durability. We will offer tailor made solutions, delivery in good time and good price to satisfy our clients. As the manufacturers, we will make perforated cable trays using strong materials and protective covers, which will make them easy to withstand and resist corrosion.
Types of Perforated Cable Tray in Pune
As the topnotch, Perforated Cable Tray Manufacturers in Pune, we have a modern machinery and advanced technology, which enables us to provide different types of Perforated Cable Tray in Pune:

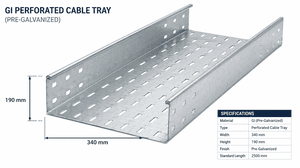

- GI Perforated Cable Tray (Pre-Galvanized): Our offered GI Perforated Cable Tray are widespread of the types; it is produced out of pre-galvanized steel sheets, suitable in the interior and commercial, as well as, not very often, in light industry.

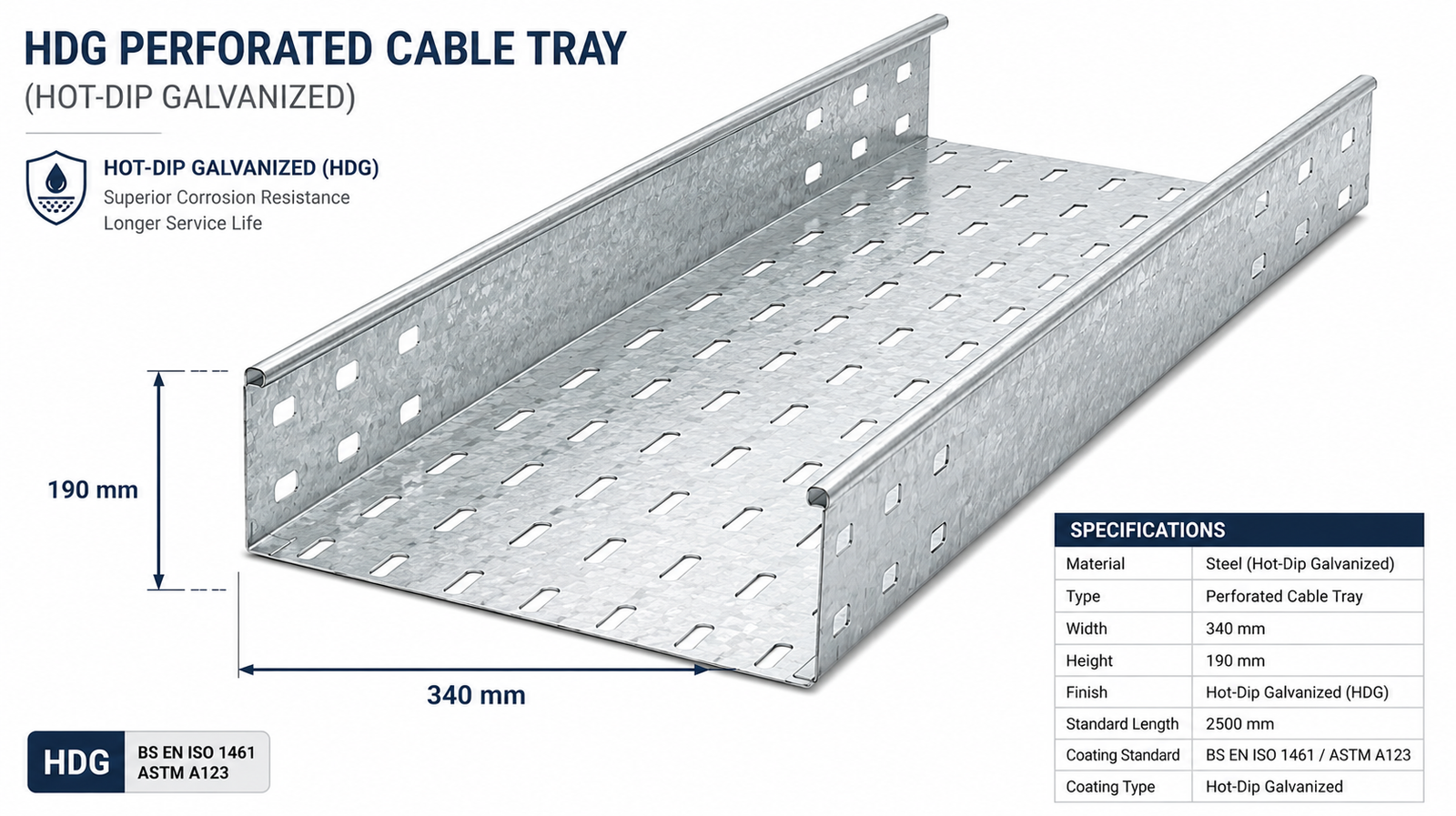

- Hot-Dip Galvanized/ HDG Perforated Cable Tray:This is coated with zinc after it is fabricated to ensure maximum protection against rust and other environmental conditions used in an outdoor or harsh industrial setup.

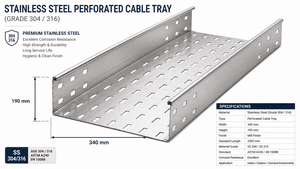

- Stainless steel perforated tray:This is highly corrosive and is normally in 304 or 316 grade and is used in the chemical, pharma or food grade manufacturing.

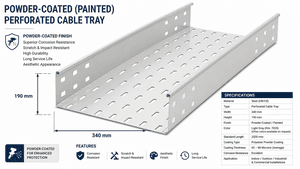

- Powder-Coated/Painted Tray: This is commonly crafted of GI or steel using a powder coating as an added protection or as a color-coded identifiable item.

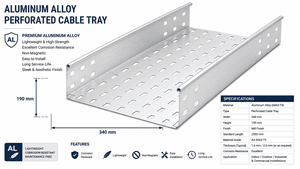

- Aluminum Alloy Perforated Tray It has a low weight and it is naturally corrosion-free and is commonly applied in the special industrial setting.
Perforated Cable Tray – Test Cases
Field Scenarios, Problems, Observations & Solutions
1. Cable Overloading Scenario
Scenario: The customer was using a perforated cable tray for routing a large number of power and control cables.
Problem: The cable quantity and weight exceeded the tray's recommended load capacity.
What Customer Faced: The tray started sagging and showed signs of deformation, creating concerns about cable safety and long-term reliability.
How We Solved It: We evaluated the cable load and recommended a suitable tray size/thickness with additional supports at the required spacing. This improved the load-bearing capacity and prevented further sagging.
Status: Resolved
2. Cable Insulation Damage Scenario
Scenario: Cables were being installed through the perforated cable tray.
Problem: Sharp edges and burrs were present around some perforation openings.
What Customer Faced: The customer was concerned that the sharp edges could damage the cable insulation during installation or maintenance.
How We Solved It: We provided a tray with properly finished and smooth perforations, ensuring there were no sharp edges or burrs that could come into contact with the cables.
Status: Resolved
3. Corrosion in Cable Tray Scenario
Scenario: The perforated cable tray was installed in a humid and corrosive environment.
Problem: The existing tray coating was not adequate for the environmental conditions.
What Customer Faced: Rust and coating deterioration appeared on the tray, reducing its expected service life.
How We Solved It: We assessed the installation environment and recommended a suitable corrosion-resistant material/coating. This provided better protection and increased the durability of the cable tray.
Status: Resolved
4. Cable Congestion Scenario
Scenario: A large number of cables were routed through a single perforated cable tray.
Problem: The tray was undersized for the number of cables being installed.
What Customer Faced: Cables were congested, making identification, maintenance, and future cable additions difficult.
How We Solved It: We reviewed the cable routing and selected a properly sized perforated cable tray with sufficient space for cable installation, segregation, and future expansion.
Status: Resolved
5. Tray Sagging During Installation Scenario
Scenario: The perforated cable tray was installed over a long cable route.
Problem: The support spacing was too large and did not adequately support the tray.
What Customer Faced: The customer observed tray movement and sagging after the cables were installed.
How We Solved It: We reviewed the installation arrangement and recommended the correct support spacing and suitable supporting accessories. This provided better stability and prevented excessive sagging.
Status: Resolved
Technical Specifications of Perforated Cable Tray
Go through the technical specification given by the top Perforated Cable Tray Manufacturers in Pune:
| Parameter | Technical Specification |
|---|---|
| Product | Aluminium Perforated Cable Tray |
| Material | Aluminium Alloy |
| Aluminium Grade | 6063 |
| Tray Type | Perforated Type |
| Tray Thickness | 1.5 mm – 2.0 mm |
| Tray Width | 100 mm – 1000 mm |
| Tray Height | 50 mm – 80 mm |
| Standard Length | 2.5 m / 3 m or as per requirement |
| Perforation Type | Round / Slotted / Customized |
| Perforation Pattern | As per customer / project requirement |
| Surface Finish | Mill Finish / Anodized / Powder Coated |
| Load Capacity | Approx. 50 – 500 kg/m, depending on size, thickness and support span |
| Weight | Approx. 3 – 8 kg/m, depending on dimensions |
| Tensile Strength | Approx. 215 MPa |
| Modulus of Elasticity | Approx. 69 GPa |
| Electrical Conductivity | Approx. 30–35 MS/m |
| Corrosion Resistance | Good to Excellent |
| Temperature Range | Approx. -50°C to +100°C |
| Cable Ventilation | Excellent |
| Heat Dissipation | Excellent due to perforated construction |
| Jointing Method | Bolted Splice / Coupler Plates |
| Support Arrangement | Wall / Ceiling / Floor / Suspended Supports |
| Typical Support Span | 1.5 – 2.5 m, subject to load and deflection requirements |
| Accessories | Bends, Tees, Crosses, Reducers, Risers, Covers and Splice Plates |
| Customization | Width, height, thickness, perforation pattern and length |
| Applications | Power, Control, Instrumentation, Data and Communication Cables |
Features of Perforated Cable Tray of SAAR Industry
We follow agile manufacturing process with the help of our latest machines and equipments. Our perforated cable tray in Pune consist multiple features and advantages. Our product range passes through multiple quality checking and rigous testing, we have completed around 1200+ product across Pune which made us the leading name amongst top Perforated Cable Tray Manufacturers in Pune.
- Good ventilation, as a result of perforated design.
- Very strong and durable structure.
- Finishing alternatives that are resistant to corrosion.
- Easy to install and maintain.
- Applicable to heavy-industrial use.
Benefits of Choosing us as Perforated Cable Tray suppliers in Pune
- Improved Heat Dissipation and ventilation: The air can pass through the holes of the tray surrounding the cables and cools them thus avoiding cable damage. Perforated cable tray products enhance cable longevity and safety of system.
- Effective Load Bearing Capacity: Perforated cable trays have been created so that multiple cables can be transported without bending. These are very robust in holding industrial wiring systems.
- Installing and maintenance is easy: Its perforated structure allows it to be repaired with clamps and ties without problems. Handling and servicing are made quicker and easier.
- Durability and Resistance to Corrosion: There are galvanized and coated trays which are resistant to rust, moisture and extreme environments extending the life of the product.
- Flexible and Cost-Effective Design: Perforated cable trays are cheaper and can be modified or expanded easily with addition of new cables hence These are suitable in expanding projects.
Applications of Perforated Cable Tray in Pune
- Manufacturing plants in industries: Applied in the routing of power and control cables in factories, machinery and automation systems. These provide safe and orderly cabling.
- Business Properties and Offices: Applied in offices, shopping malls and information technology parks to handle electrical and data cables giving them a clean and professional look.
- Infrastructure Projects: Applied in airports, railways, highways, and metro projects in the large-scale power distribution and communication.
- Telecommunication and Data Centers: Perforated trays are used in the management of network and fiber cables and enhance airflow and minimize overheating in server rooms.
- Renewable Energy Plants and Power: Applied in power plants, solar farms and wind projects in routing of power cables and providing stable electrical networks.
Why Choose us as Perforated Cable Tray Manufacturers in Pune?
Choosing a right manufacturers of Perforated Cable Tray in Pune is essential as it is important to ensure the quality of such industrial product range. Saar Industries is the best find for Perorated Cable Tray as we owns years of working experience in this industry, here are the highlights of our company:
- ISO Certified Quality: Quality systems are certified to produce products that are of industry standards and expectations.
- High-tech Manufacturing Plant: Our production of correct and durable cable tray is done using modern machines and skilled man power.
- Customization Available: We offer special sizes, thickness and finishes according to the project requirements of clients.
- Price Competitiveness and On-time Delivery: We provide affordable services which are delivered promptly to meet the schedule of projects.
SAAR Industry is trusted Perforated Cable Tray Manufacturers in Pune, suppliers and exporters in Pune. Perforated cable tray is a necessary solution to the contemporary electrical and cable handling system. We offer safety, organization, durability, and flexibility to any form of industries. Our Group of Industries provides the quality of perforated cable trays that are bound to fulfill the need of the industry in terms of quality and durability. Our products are efficient in cable routing, maintenance and electrical infrastructure.
Get in touch with Us with Top Perforated Cable Tray manufacturers in Pune. Our group will be willing to assist you in project requirements and technical advice. Get safe, orderly, and durable cable management systems with us. Contact us for more details.
FAQ’s | Top Perforated Cable Tray Manufacturers in Pune
Mild steel, galvanized steel, stainless steel or aluminum is also used as a strength and corrosion barrier to manufacture perforated cable trays.
Organized cable routing is implemented in industries, commercial buildings, power plants, data centers, and infrastructure projects using them.
Yes, under the right conditions of galvanizing or coating, these can be applied in the outdoor environment and under harsh conditions.
Yes, manufacturers have the ability of offering customized sizes, thickness and finishes of the project.
