SAAR Industry is well-known FRP Cable Tray manufacturers in India, suppliers and exporters in India. We are 6+ Years and ISO 9OO1-2O15 certified and this means that we have the dedication to quality management systems and delivery of consistent product excellence. All cable trays are tested on strength, durability, and performance and then delivered. Our machine and skilled workers assist us to produce products that are very accurate and of uniform quality. Our customers are in numerous industries that include manufacturing plants, infrastructure, power plants, commercial buildings, and data centers.

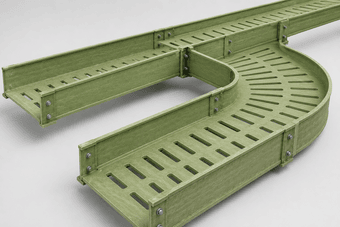

About FRP Cable Tray
The Fiberglass Reinforced Plastic (FRP) Cable Trays able to perform exceptionally in austere industrial
conditions. These trays are manufactured in fiber reinforced plastic material which has great corrosion resistance, chemical resistance, moisture and extreme weather resistance. These are very common in industries whereby metal trays can easily break because of rust, electric conductivity, or as a result of high maintenance. Having a high level of customer satisfaction, we offer tailor-made designs, quality and fast delivery and prices.
Key Types of FRP Cable Trays:
- Ladder Type: This type has two longitudinal side rails with rungs, which ensures a high level of ventilation and the weight of heavy power cables.
- Perforated Type: It has a ventilated bottom and holes or slots allowing good airflow and drainage which is appropriate when the cable load is moderate.
- Solid Bottom Type: Provides a solid bottom to allow the maximum cable protection, which is effective in the clean rooms or where EMI/RFI protection is necessary.
- Channel Type: U-shaped shape, which is best used with small amounts of cables, instrumentation, or branch wiring.
- Trough Type: This is like the solid bottom but it tends to have pre-drilled holes to allow draining of water and this gives it a better support to the cables compared to ladders.
- Wire Mesh (Basket) Type: This type consists of light wire mesh material that is open-structured and is used in high ventilation and easy cable routing in telecommunication installations.
Technical Specifications of FRP Cable Tray
| Feature | Specification Details |
|---|---|
| Material Composition | Fiberglass Reinforced Plastic (Glass Fibre + Polyester/Vinylester Resin) |
| Manufacturing Process | Automated Pultrusion (High Structural Integrity) |
| Tray Types | Ladder Type, Perforated Type, and Channel/Solid Bottom |
| Standard Length | 3000 mm (3 Meters) |
| Width Range | 50 mm to 1000 mm |
| Side Rail Height | 50 mm, 75 mm, 100 mm, and 150 mm |
| Thickness | 3.0 mm to 6.0 mm (Commonly 3mm, 4mm, 5mm) |
| Resin Options | Isophthalic Polyester (Standard), Vinylester (High Chemical Resistance) |
| Load Capacity | Up to 150 kg/m (Depends on support span and thickness) |
| Dielectric Strength | High (Up to 25 kV/mm); Naturally Non-Conductive |
| Thermal Stability | -40°C to +120°C |
| Compliance Standards | NEMA FG-1, ASTM E-84 (Fire Retardant), IS 6746 |
Features of FRP Cable Tray
- Good resistance to corrosion in chemical and wet conditions.
- Light structure and powerfulness.
- Safely electrically not conducting.
- Fire resistant and heat resistant.
- Outdoor use of UV and weather resistant.
Benefits of choosing us as FRP Cable Tray suppliers in India
- Corrosion Resistance: FRP cable trays do not rust as metal ones and are fixed in chemical, marine and wet conditions. This improves the life of the products, and it lowers the replacement cost.
- Electrical Safety: FRP material is not a conductor, so the chances of electrical shocks and short circuit are minimized. It enhances security in power plants and industrial plants.
- Portable and Flexible Installation: The FRP trays are a lot lighter than steel or aluminum trays, and therefore, the transportation and installation is fast and economical.
- Low Maintenance Cost: There no need to paint or use anti-rust on the FRP trays hence saves time taken in maintenance and cost of running.
- High Durability and Strength: Although the FRP trays are light, they can support heavy cable loads and can work in severe environmental conditions.
Applications of FRP Cable Tray
- Chemical and Petrochemical Plants: Applied in extremely hostile environments that are alive to cover electrical cables against chemicals and moisture.
- Substations and Power Plants: Non-conductive and fire resistant, which makes it ideal in respect of electrical safety.
- Wastewater and Water Treatment Plant: Applied where trays made of metal are susceptible to moisture and chemicals.
- Infrastructure Projects: Used in tunnels, bridges and industrial buildings to route cables permanently.
- Centers and Conversion Factories: Applied to structured cable and management as well as maintenance and airflow.
Why choose us as FRP Cable Tray Manufacturers in India?
- 6 years Experienced manufacturer and good industry knowledge.
- Strict quality assurance system based on ISO certified company
- Modern production plant and qualified workers.
- High quality raw materials of durable products.
- Tailored design solutions to the need of the customer.
SAAR Industry is trusted FRP Cable Tray manufacturers in India, suppliers and exporters in India are the future of the safe and durable cable management systems. These are also highly resistant to corrosion, electrical safety, and have a long-life span in use thus suitable to the contemporary industrial applications. SAAR Group of Industries manufactures high quality FRP Cable Trays that are of international standard and specifications to satisfy the needs of customers.
In case you are interested in finding a trustworthy partner in the production of FRP Cable Tray. Our team will be willing to offer unique solutions, technical advice, and the quality products in your project. Contact us to receive a quote and professional advice.
FAQ's
FRP Cable Tray consists of fiber reinforced plastic material, which is corrosion resistant, highly strong and also electrically insulated.
They are widely applied in power plants, chemical industry, infrastructure, data centers, and water treatment plants.
Yes, FRP trays are corrosion resistant, lightweight and electrically safe as opposed to steel trays, which means that it is appropriate to severe environments.
FRP trays also have very low maintenance as they neither rust nor decay as metal trays.
